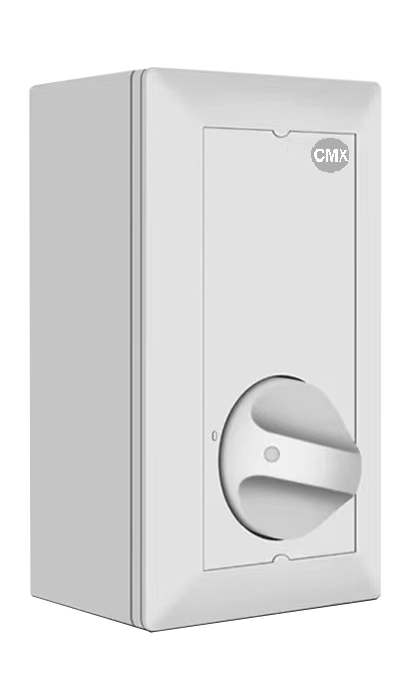

100V Volume Control VC-W10/VC-W20/VC-W30/VC-W60/VC-W120

In Stock

(0 customer reviews)

PA (Public address) system use volume control.Volume control 10W-20W-30W-60W-120W.Built in transformer to control the PA 100V or 70V line loudspeakers.Power-save version.Continuous rotating system.Program selector with up to eleven channels.Complies with international installation and safety regulations.

Feature:

  • PA (Public address) system use volume control.
  • Volume control 10W-20W-30W-60W-120W.
  • Built in transformer to control the PA 100V or 70V line loudspeakers.
  • Power-save version.
  • Continuous rotating system.
  • Program selector with up to eleven channels.
  • Complies with international installation and safety regulations.
Specification:
Model VC-W10 VC-W20 VC-W30 VC-W60 VC-W120
Description 100V Volume Control
Rated Output 10W 20W 30W 60W 120W
Line Input 100V or 70V
Volume Step 11 steps
Attenuation Steps 10 x 2 dB + off
Total Attenuation 20dB
Finish White
Mounting Way Surface mount or in-wall mount
Depth 50mm
Dimensions 87 x 147 x 61.5 mm

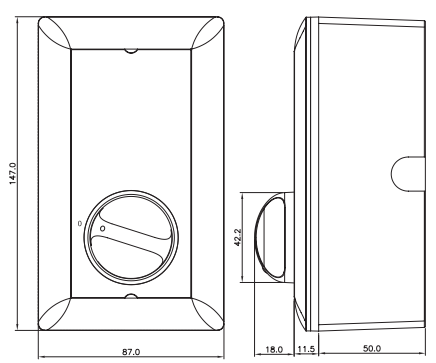

Side View, Dimension & Wiring Diagram:
