Car Amplifier with USB/SD/FM/Blue tooth CP-60MC

In Stock

The CP-60MC is a 60 W car amplifier designed for use with a 12 V car battery which is of 60 watts 8 ohms power output to power loading two 30 watts or four 15 watts loudspeakers. It is powered by 12V or 24V car battery, with Mic input,with Mp3, FM and blue tooth for music streaming, with EMC for fire alarm override, the Mic1 with mute over BGM. This car amplifier is ideal for bus, car, Taxi, cruise & vessel etc vehicle sound system.

Feature:

Mini size car or vessel vehicle amplifier
Tabletop car amplifier with Mp3 player, FM radio & blue tooth
Rate power output at 60W 8 Ohm and speaker output of 4-16 Ohm
Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
LED indicators for power, clip, protect and signal,Mic1 of 6.3mm Jack input on front panel
Mic/line2 switchable input balanced XLR with +48V phantom power
Line1 input of RCA input and one RCA line output
With EMC input from fire alarm system
Input priority from high to low: EMC, Mic1 and others inputs
Volume control for Mic1, line 1, Mic2/line2, bass/treble and master
Complete amplifier protection includes short-circuit, clip, overload and high temp
12-24V DC car battery power supply system

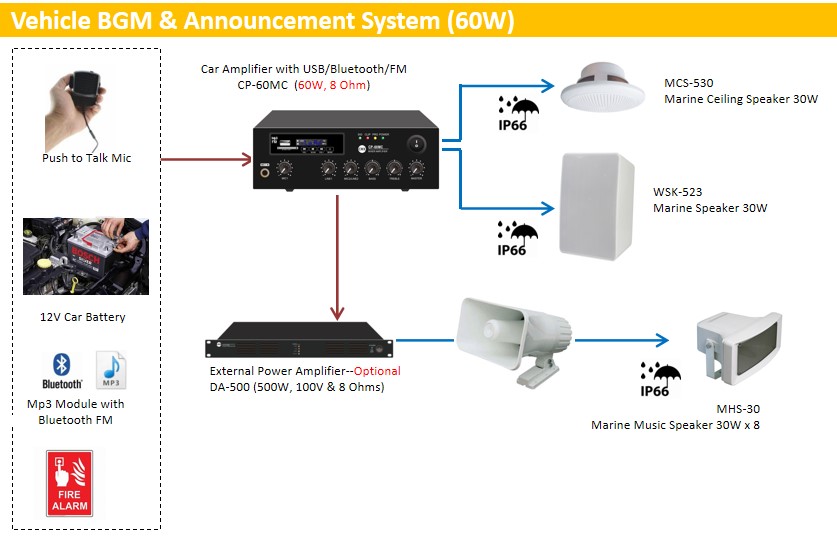

Connection Diagram： Specification:

Model	CP-60MC
Description	Car Amplifier with USB/SD/FM/Blue tooth
Rated Power Output	60W
Speaker Outputs	4-16 Ohm
Connector	Mic1 of 6.3mm Jack on front panel Mic/line2 switchable input balanced XLR with +48V phantom power Line1 input of RCA input and one RCA line output With EMC input from fire alarm system
Input	MIC: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA
Line Out	0.775(0dBV)
Frequency Response	60Hz-15kHz(±3dB)
S/N Ratio	Line ≥ 85dB, Mic≥ 72dB
THD	Less than 0.5%
Protection	Short-circuit, clip, overload and high temp protection
Power Consumption	80W
Power Supply	12-24V DC; 50-60Hz
Dimension	220×200×72mm
Weight	2.6kg
