DSP Processor DSP240 DSP360 DSP480

In Stock

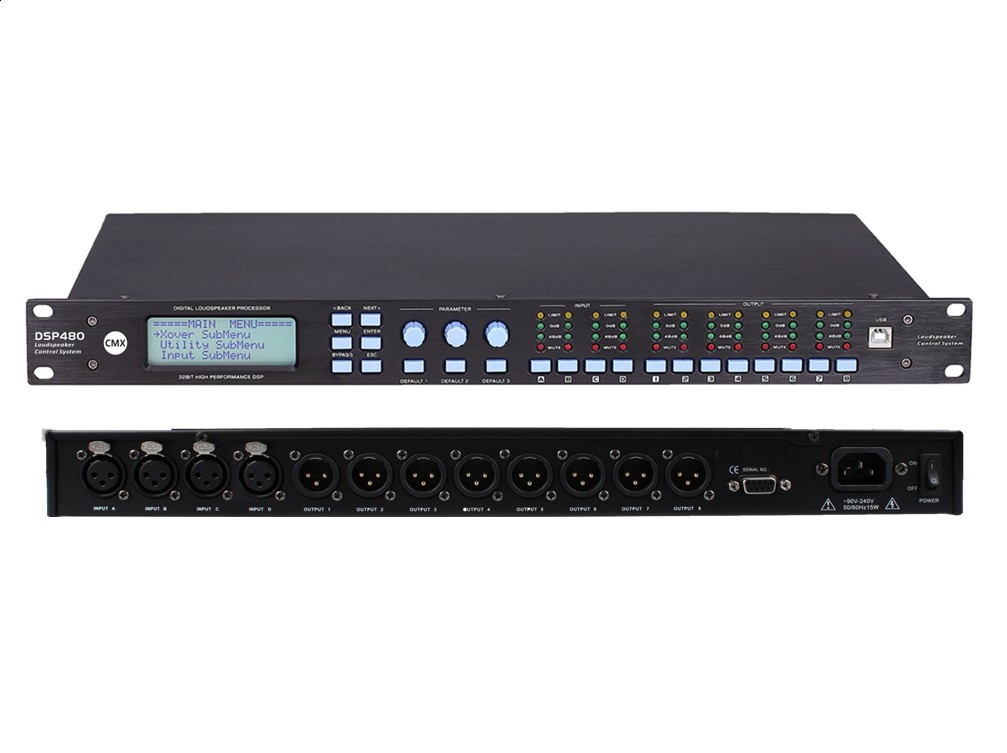

DSP480 is 4 inputs 8 outputs DSP digital signal processor with software to offer all in one high standard professional audio solution.

Feature:

Full digital audio processor for extreme high quality sound performance.
Applications for auditoriums, houses of worship, theaters, convention centers, stadium and stage monitoring system.
4 inputs and 8 outputs with audio matrix system
96k Hz sampling rate 24 bit high performance AD/DA converters.
40 bit floating point super efficiency DSP chip.
8 bands parametric equalization per input channel
9 bands parametric equalization per output channel
Each band can be switched to bell, Hi/Lo-Shelving, HP/LP, Band Pass, Notch and All Pass filters.
Crossover filters with slopes from 12dB/Octave up to 48dB/Octave including Butterworth, Bessel, Linkwitz Riley.
Each output features a dynamic range controller composed of a peak limiter.
Adjustable delay time up to 1,000 ms for every channel.
Convenient use of function buttons on either front panel or the included English software interface displays.
24 pre sets can be programmed and stored and protected by password.
Each input channel provides 8 PEQ, gain control, noise gate function, RMS compressor, and configurable delay.
Each output offers 9 PEQ with the crossover filters wholes slopes from 12dB up to 48dB/Octave.
Each output path also features peak limiter, HP/LP filters, and driver alignment delay.
Full matrix mixing mode where inputs may be routed/mixed in any ratio to any output.
Direct user-friend English PC/Network connection and control.
Front panel USB connector for direct PC communication.
RS232 connection for system setup, monitoring and control via full manageable remote PC software.
Front panel interactive LCD display for local access and configuration.
Simultaneous control up to 50 units via PC software security lockout.
Option model of DSP240 (2 In/4 Out) and DSP360 (3 In/6 Out)

Applications:

Professional Sound System, Sound Reinforcement System, Live Performance, AV Conference System
Auditoriums, Houses of Worship, Theaters, Convention Centers, Stadium and Stage Monitoring System

Specification:

Model	DSP480
Description	Digital Audio Processor
Analog Input	4×XLR balanced, >10k Ohm
Analog Output	8×XLR balanced, 50 Ohm
THD+N	0.002% at 1kHz 0dBu
S/N Ratio	<100dBA
Frequency Response	20-30kHz; -0.5dBu at 20Hz and 20kHz
AD/DA Converter	24 bit-48kHz
DSP Gain	From -40dBu up to +15dBu by 0.1dBu resolution steps
PEQ	8 PEQ per channel
PEQ Type	Hi/Lo-Shelving, HP/LP, Band Pass, Notch and All Pass filters
PEQ Gain	From -30dBu up to +15dBu by 0.1dBu resolution steps
Filter Type	Butterworth, Bessel, Linkwitz Riley
Filter Slope	From 12dBu up to +48dBu per octave
PEQ Frequency	0.05-3 Octaves (Q=0.404-28.852)
Crossover Filter	HP/LP per output channel
Input RMS Compressor	Threshold from -20dBu to+20dBu and Byp Attack time from 0.3 ms to200ms; Release time from 0.3 sec up to 3 sec
Output Peak Limiter	Threshold from -20dBu to+20dBu and Byp Attack time from 1 ms to 900ms; Release time from 0.3 sec up to 5 sec
Input & Output Polarity	Normal 0° or inverted 180°
Input & Output Mute	ON/OFF
Delay	0-1,000ms per input and output channel
Presets	24 user presets
Connector	4×XLR inputs, 8×XLR outputs, USB on front panel, RS232 of 9PIN on rear panel
Power Supply	AC 90V-240V, 50-60Hz
Dimension	484×44×222mm, 1RU
Weight	4Kg
