In Stock

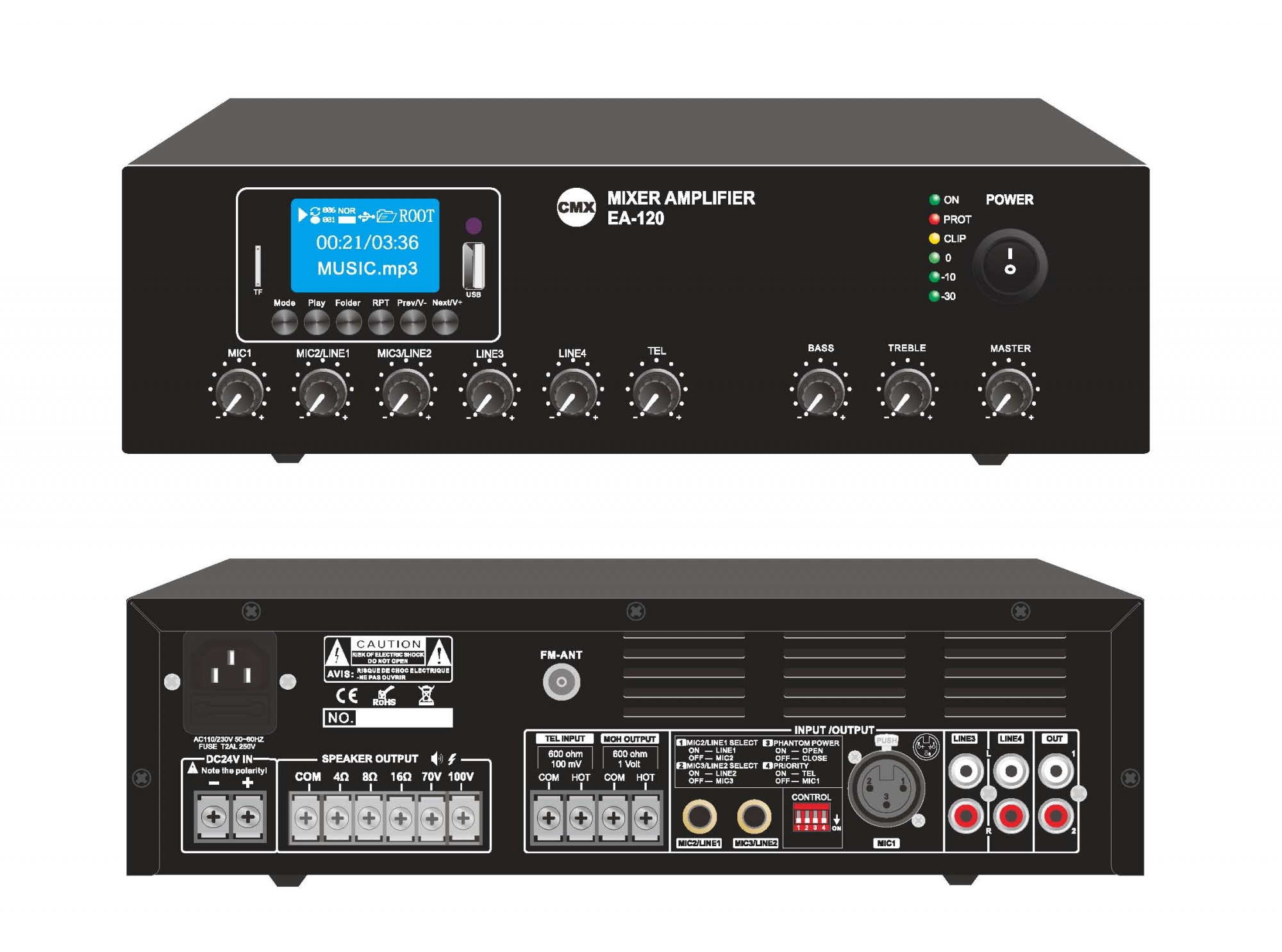

EA-30D, EA-60D & EA-120D is mixer amplifier with DAB+, USB/SD & Bluetooth, its RMS power of 30W, 60W to 120W. 3 mic and 2 aux inputs, support 100V & 8 Ohm loudspeakers connection.
| Model | EA-30D | EA-60D | EA-120D |
| Description | Tabletop Mixer Amplifier with USB/SD & FM/DAB+ & Bluetooth | ||
| Rated Power Output | 30W | 60W | 120W |
| Speaker Outputs | 100V or 70V & 4-16Ω | ||
| Connector | Mic1 input by balanced XLR with phantom power Input2-3 inputs Mic/Line switchable unbalanced 6.3mm jack Line1-2 inputs by RCA, Tel input with MOH, Line output by RCA | ||
| Input | Mic1-3: 5-8mV, 600Ω; Line & TEL: 150-470mV, 10KΩ, unbalanced RCA | ||
| Line Out | 0.775(0dBV) | ||
| Frequency Response | 60Hz-15kHz(±3dB) | ||
| S/N Ratio | Line ≥ 85dB, Mic≥ 72dB | ||
| THD | Less than 0.5% | ||
| Protection | short-circuit, clip, overload and high temp protection | ||
| Power Consumption | 60W | 100W | 200W |
| Power Supply | 230V AC & 24V DC; 50-60Hz | ||
| Dimension | 320×210×90mm | ||
| Weight | 3.7kg | 4.3kg | 4.9kg |
