PA-100PR Public Address System 10 Inputs Pre-Amplifier

In Stock

PA-100PR Public Address System 10 Inputs Pre-Amplifier,5 microphone inputs, 3 auxiliary inputs, 2 priority EMC inputs and 2 outputs.19” rack mount mixer pre-amplifier for rack installation.10 inputs pre-amplifier for PA system.

Feature:

Public address system signal processing equipment.
19” rack mount mixer pre-amplifier for rack installation.
10 inputs pre-amplifier for PA system.
Direct connect with power amplifier and audio source player.

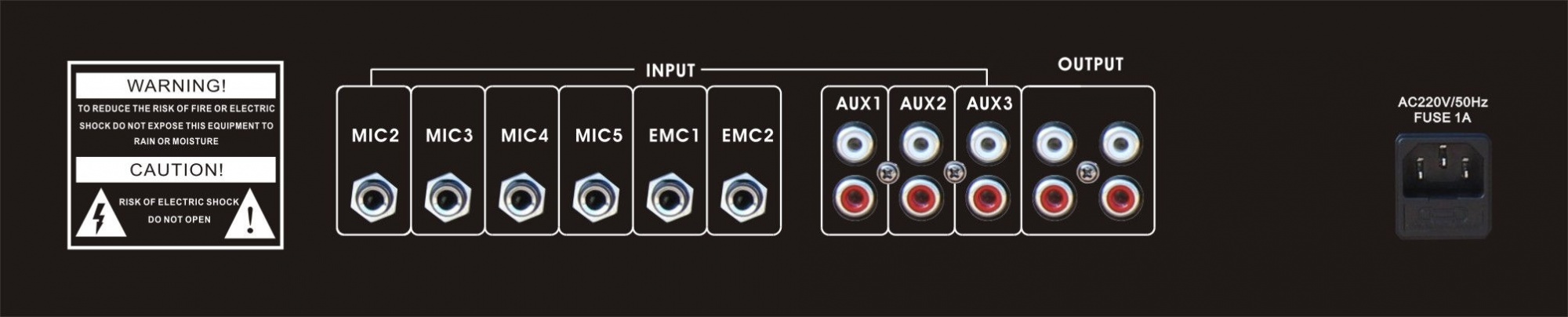

5 microphone inputs, 3 auxiliary inputs, 2 priority EMC inputs and 2 outputs.
Microphone 1 with VOX muting function.
Individual volume control for microphone and aux input.
Bass and Treble tone control
With 10 output level meter to indicate the output level
Built-in siren and chime

Specification:

Model	PA-100PR
Name	Public Address System 10 Inputs Pre-Amplifier
Inputs	Mic1, 2, 3, 4, 5: 600Ω, 5mV, unbalanced
	Aux1, 2, 3: 10kΩ, 200mV, unbalanced
	EMC Input1 & 2: 10kΩ, 200mV, unbalanced
Frequency Response	60Hz-15kHz(±3dB)
S/N Ratio	>70dB
THD	<0.01%
Protection	AC fuse
Power Consumption	15W
Power Supply	AC 220-240V; 50-60Hz
Dimension	484×350×88(mm)
Packing	520×435×185(mm)
Net weight	5.96kg
Gross weight	7.62kg
