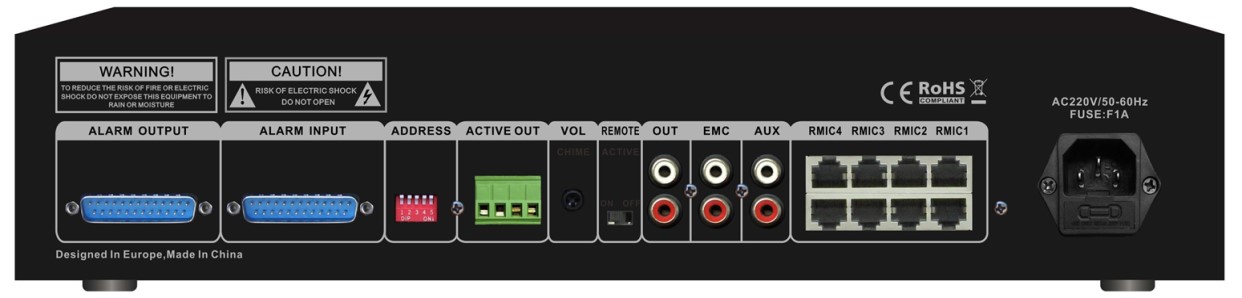

PA-100PS 10 Zone Paging Selector

In Stock

PA-100PS is 10 zone paging selector which is used in public address system or PA system to talk to individual,group or all 10 loudspeaker zones. The 10 zone speaker selector is ideally used for multiple zone paging system.The Mic1 emergency microphone input on the front panel is used for emergency announcement with highest priority, the built-in chime is used for pre-reminding before announcement.

Feature:

10 Zone paging selector working with remote microphone PA-100RM
Remote zone paging system for PA system & public address system
19” rack mount paging controller of 2U height
Each paging system can connection 4 units remote microphones
One remote paging microphone could control up to 320 loudspeaker zones
Multiple paging mode: separate zone, group zones and all zones
With emergency Mic1 input of highest priority
built-in chime is used for pre-reminding before announcement
With interface for fire alarm system
Power consumption of 15W

Specification:

Model	PA-100PS
Description	10 Zone Paging Selector
Zone Capacity	10 zone per unit and expandable to 320 zones
Microphone Qty	4 units of remote microphones PA-100RM
Input	MIC: 600Ω, 5mV, unbalanced: line: 10kΩ, 200mV, unbalanced
Output	Line: 10kΩ, 0.775V (0 dB), unbalanced
Frequency Response	30-15k Hz (± 3 dB)
THD	<0.01% at 1kHz
S/N Ratio	>72dB
Alarm Input	0V short-circuit contact
Alarm Output	0V short-circuit contact
Power Supply	AC 220-240V ± 10% 50-60Hz
Power Consumption	15W
Dimension	484×350×88mm
Weight	6.3kg
