PA-1600C is one integrated public address system controller built-in audio matrix, weekly timer, 32 zone speaker selector, 32 zone paging controller, which could set up a 32 zone 32 channel music multiple room audio system, the system zone capacity expandable 64 zones. The PA-1600C is built-in weekly timer could set up auto-announcement at pre-set time. The PA-1600C is with dipswitch could be set up as master controller and slave controller. By connection with PA-1600RM remote paging microphone, live speech, separate zone, group zones and all zone
paging system could be easily set up.
Feature:
| Model | PA-1600C |
| Description | 32 Zone Audio Matrix Controller |
| Channel | 8 channel inputs and 32 channel outputs |
| Max Capacity | 64 zones by cascaded 7 slave units together |
| Call Station Input | Call station input 1-5, RJ45 port, 10kΩ, 10V, balanced |
| Input | Line 1-8: 10kΩ, 330mV, unbalanced RCA input EMC1: 10kΩ, 330mV, unbalanced |
| Output | Line 1-32: 10kΩ, 330mV, unbalanced RCA output EMC1: 10kΩ, 0.775mV, 0dB, unbalanced |
| Alarm | Alarm input: 0V, closed circuit contact Alarm output, 0V, closed circuit contact |
| Display | 128×64 LCD display in English |
| Frequency Response | 60-16KHz (±3dB) |
| Control | 32 zone output volume controls Menu buttons: up, enter & down ID dip switch Master or slave dip switch |
| Protection | AC fuse 0.5A, 1PCS |
| Power Consumption | 20W |
| Power Supply | AC 230V, 50-60Hz |
| Dimension | 484×390×132mm |
| Net Weight | 7.1kg |

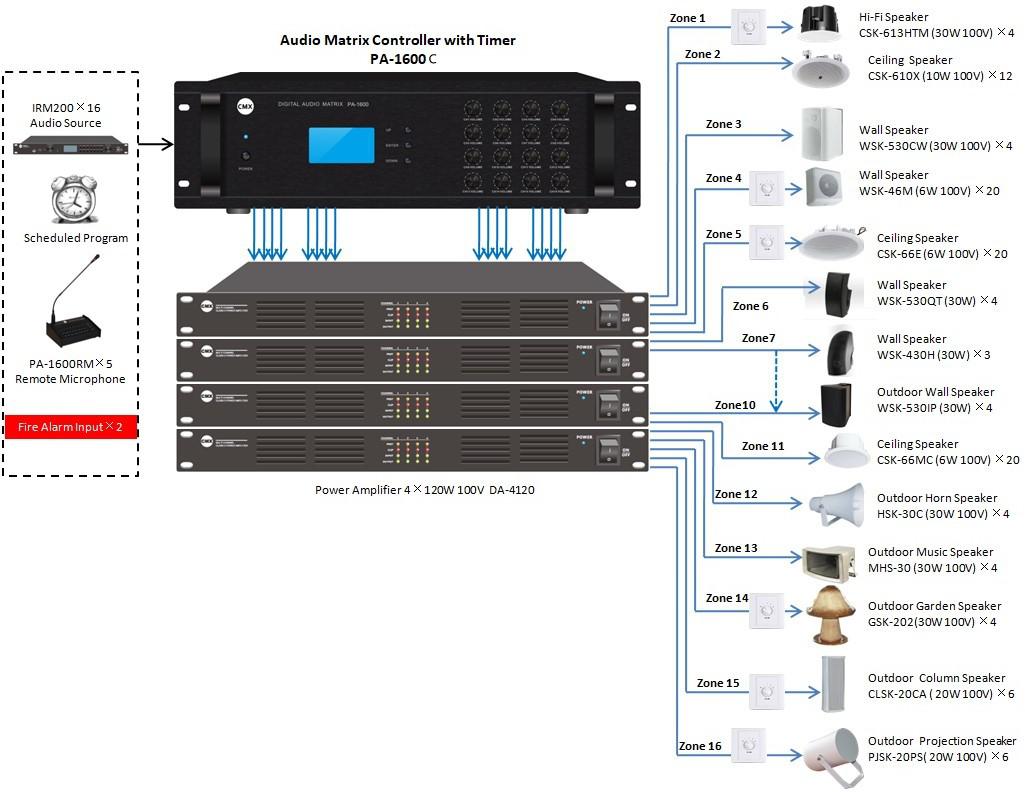

Connection Diagram:
