PA System Public Address System Factory PA-200MC 10 Zone PA System Controller with Mp3 is public address controller with 10 zone output and paging controller ideal for cost effective background music system with paging and voice alarm functions.

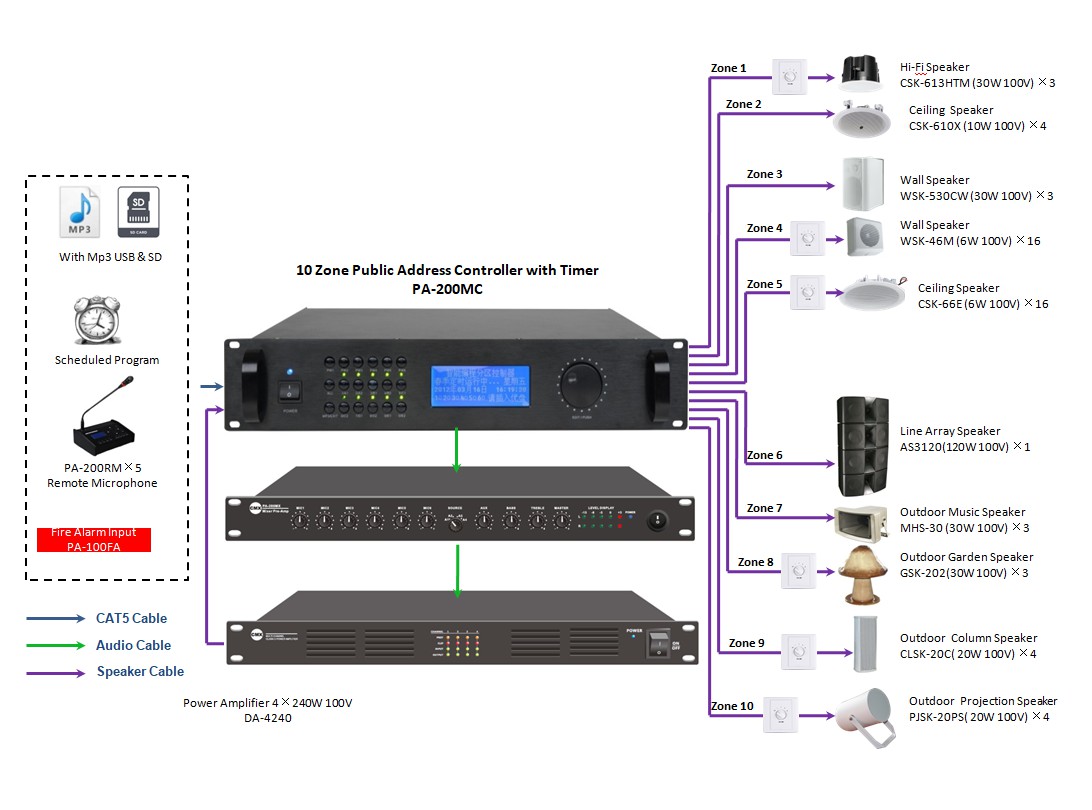

Description: PA-200MC is one integrated public address system controller built-in weekly timer, 10 zone speaker selector, 10 zone paging controller, USB/SD card player, which could divide one amplifier into 10 zone for separate paging control, by adding the PA-200MZ speaker selector, the system zone capacity up to 160 zones. Feature: l Public address system classic cost-effective medium to big-scale sound system controller. l Ideal PA sound system controller for school, shopping mall, hotel, and intelligent office etc. l All in one intelligent PA system controller built in weekly timer, 10 zone speaker selector, Mp3 player, remote 10 zone paging controller, fire alarm and voice evacuation system interface and programmable power sequencer. l Built-in weekly timer, monitor, 10 zone speaker selector, power sequencer &Mp3 player. l Expandable from 10 zones to 160 zones. l 3 modes of voice alarm: all zones, separate zone and neighboring zones voice alarm. l One amplifier or 5 amp inputs divided into 10 zones speaker output. l Timely broadcast up to 99 program sources. l Broadcast modes: random, repeat and circle. l 4 regular programs and 1 spare program for emergency/particular circumstance. l Functional swift key for internal MP3 player priority manual broadcast. l Zone1-10 selector, all zone selectors, music/paging switch, MP3 swift button, swift program button, power control channel 1-4 buttons & menu button. l Power handling 5000W over each 10 zones l The system communication distance up to 1kms l Memory function even in case of power off.
| Model | PA-200MC |
| Description | Intelligent 10 Zone Controller with Mp3 |
| Function Button | Light touch press buttons include: 4 power switch buttons, 1 MP3 control button, 1 backup program switch,10 zones speaker selector button, all zones button, 1 music or paging switch button. One menu button. |
| Indication Method | 192x64 LCD display, English |
| Audio Output | 1KΩ 0.775V Unbalance(6.35 RC), 0V(Short Circuit) Industrial Standard |
| EMC Input and Output | Integrated Terminal Block, 0V(Short Circuit) Industrial Standard |
| 100V Input | Integrated Terminal 5 Channels: CHA CHB CHC CHD CHE |
| Amplifier Input and Output | 0.5W |
| Monitor Power of Speaker | −∞~0dB |
| Monitor Volume Attenuator | 24 hours(hour-minutes-seconds) weekly |
| Time Mode | Total 5pcs(4 normal programs, 1EMC) |
| Program Quantity | Total 512 Steps, 1 day 200 Steps |
| Program Steps | RS422 |
| Communication Protocols | RS485 and RS232 |
| Communication Port | Two RJ45 ports for remote microphone, one RS232 port for PC |
| Communication Speed | 4800bps |
| MP3 Frequency Response | 20Hz~20KHz/ 1dB |
| Mp3 Store Format | Compatible FAT12, FAT16, FAT32 |
| Power Supply | ~110V/60Hz or ~230V/50Hz |
| Dimensions | 484x303x88mm |
| Weight | 6.8kg |
