In Stock

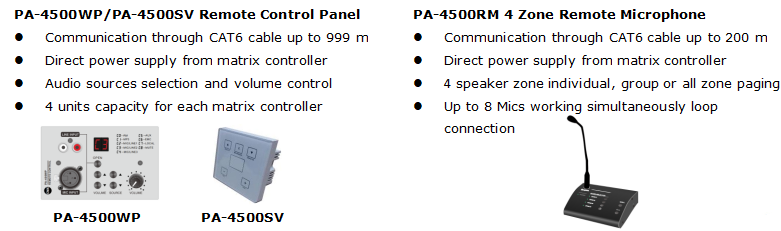

PA-4500MX is a 4 Zone mixer amplifier or 4 channel stereo mixer amplifier, which support 100V & 8 Ohm two outputs at the same time, 3 mic, 1 aux, RMS 120W by four channel to 500W by four channels. With remote paging microphone PA-4500RM and remote control PA-4500SV and PA-4500WP as option to add with system. Ideal for multiple room multiple music audio matrix system for hotel, fitness center, restaurant and theme park sound system etc.

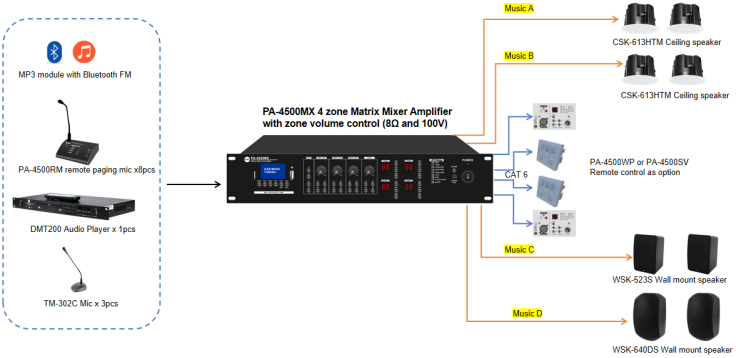

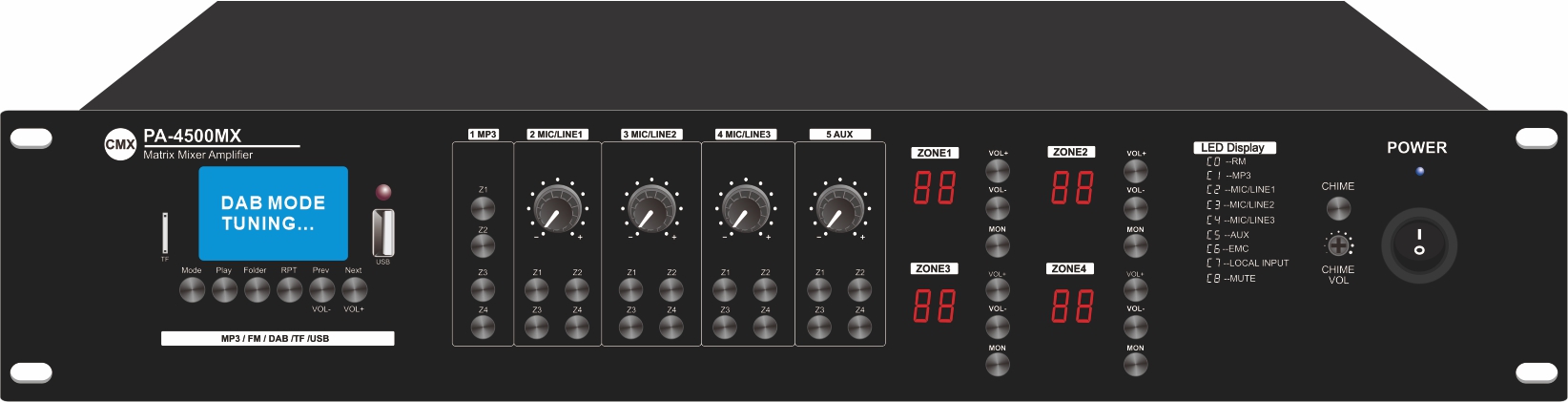

Description: The PA-4500MX series 4 zone mixer amplifier is designed for 19” rack mount installation or tabletop use both application, it is ideal for both professional sound system and commercial audio solutions, since it is designed with 4 zone speaker outputs support 100V & 8-16Ω. The PA-4500MX series mixer amplifier integrates two 100V & 8 Ω amplifier into one unit, so it could be used as stereo mixer amplifier or 4 zone commercial mixer amplifier. The mixer amplifier is built-in media player of USB/SD/FM/ & Bluetooth, with 3 mic inputs, line input, EMC input, 8 units 4 zone remote paging mic PA-4500RM and 4 units remote panel PA-4500WP or remote panel PA-4500SV and one mute input. 3 Mic/line switchable inputs, 1 aux input and an integral USB/SD/FM audio player with Bluetooth receiver can be matrix switched to any of the 4 zones independently. Mic1 channel with VOX highest priority and each microphone 1-3 inputs have switchable +48V phantom power. A master chime with volume can be used for paging calls and Alerts. The 4 zone mixer amplifier is designed for multi-room commercial audio systems requiring different audio sources & multiple paging microphones, additionally, up to 8 units remote microphones and 4 units remote control panel could be connected to this 4 zone mixer amplifier through CAT6 cable , which could be installed in four separate rooms to select different audio sources locally and adjust the local loudspeaker loudness and input Bluetooth to its own room. The mute input could integrate with fire alarm system or other third party system. The amplifier is designed with complete protection includes short-circuit, clip, overload and high temp. Features:
| Model | PA-4120MX | PA-4240MX | PA-4350MX | PA-4500MX |
| Description | 4 Zone Mixer Amplifier with USB/SD/FM/Bluetooth | |||
| Rated Power Output | 4×120W | 4×240W | 4×350W | 4×500W |
| Speaker Output | 100V and 8-16 Ohms | |||

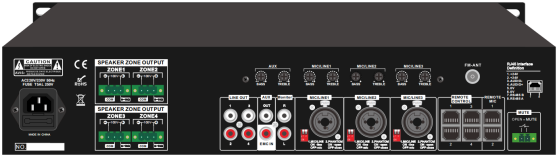

| Connector | Mic/line1-3: 10mV, balanced COMBO XLR input with +48V phantom power Line1-2: 775mV; RCA type Mute: Closed circuit = remote mute, open circuit=normal working, Two RJ45 ports for remote microphone & remote control panel | |||
| Input | MIC1-3: 10mV; Line, 150-470mV, 10KΩ, unbalanced RCA | |||
| Line Out | 0.775(0dBV) | |||
| Frequency Response | ||||
| THD | <0.1% | |||
| S/N Ratio | >80dB | |||
| Protection | High temp, short circuit, clip & overload | |||
| Power Supply | 230V AC, 50-60Hz | |||
| Power Consumption | ||||
| Dimension | ||||
| Weight | ||||
