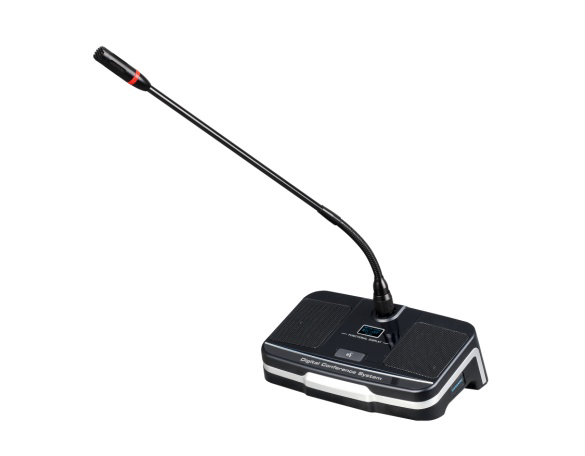

Digital Conference System (CAT6 & Recording) CS-903, Chairman Unit CS-904, Delegate Unit

In Stock

CS-903 and CS-904 is digital conference system microphone system of discussion function.

Features:

Digital conference system microphone system of discussion function.
CS-903 is chairman unit with priority over CS-904 delegate unit.
Digital conference system by CAT6 cable and RJ45 port, 8 wired cable and 8 PIN connector as spare use.
Super cardioid directive condenser pickup
Special anti-jamming circuit design without interference with mobile, wi-fi, Bluetooth and radio system.
Each controller supports 10 chairman microphones and 100 delegate microphones.
Support multiple discussion modes: free, first in first out, and limited discussion.
Support free discussion quantity of 1, 2, 3 and 5.
With round ring indicator will be light on when microphone on.
Human voice pick up distance up to 15-60cm.
Flexible gooseneck microphone of black color.
Each microphone with volume attenuator.
With 0.96” OLED to display the ID and working status.
Power supply direct from digital conference system controller CS-900.

Specification:

Model	CS-903	CS-904
Description	Chairman Unit	Delegate Unit
System Capacity	100 units and 1000 units by cascaded more extension controller
Connection Way	Hand in hand
Power Supply	DC24V by controller CS-900
Voice Pickup Distance	15-60cm
Sensitivity
Max SPL	125dB
THD	<0.05%
S/N Ratio	>80dB
Frequency Response	30Hz-20KHz
Impedance	2k Ohm
Direction	0°/180°>20dB, 1kHz
Indicator	Red round ring indicator light on when microphone on
Gooseneck Length	400mm
Display	0.96” OLED to display the ID and working status.
Connector	One RJ45 port by CAT6 cable and one 8 PIN port as spare use
Finish	ABS in black
Dimension	205(W)×115(D)×60(H)mm
Weight	1kg
