EN54-24 Sound Projector PJSK-20ASEN

In Stock

EN54-24 Sound Projector PJSK-20ASEN.Rated power output 20W-10W-5W at 100V & 8 Ohm,Waterproof level of IP66,Ideal for outdoor music and speech use in school, office, hotel and airport

Feature:

Compliant with the EN54-24 standards
PA (Public Address) system sound projector with transformer
Public Address outdoor sound projector for BGM & paging system
Ideal for outdoor music and speech use in school, office, hotel and airport
6.5” PP full range waterproof woofer
Rated power output 20W-10W-5W at 100V & 8 Ohm
Waterproof level of IP66
Built-in ceramic connector, 95℃ fire-resistant cable and thermal fuse
Two AB waterproof glands
Aluminum enclosure and stainless metal bracket in white
Quick installation by supplied stainless mounting bracket

Specification:

Model	PJSK-20ASEN
Description	EN54-24 Sound Projector
Rated Power Output	20W-10W-5W at 100V & 8 Ohm
Speaker	6.5” PP full range waterproof woofer
Line Input	100V or 70V
Frequency Response	110-15KHz
SPL(@1W/m)	92dB
IP Rate	IP66
Connector	Two AB waterproof gland
Dimension	Φ170×252mm
Weight	2.8kg
Material	Aluminum enclosure and stainless metal bracket in white
Mounting Way	Quick installation by supplied stainless mounting bracket

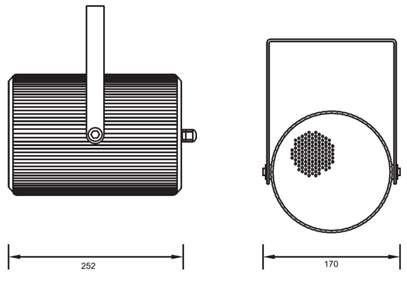

Side View & Dimension:

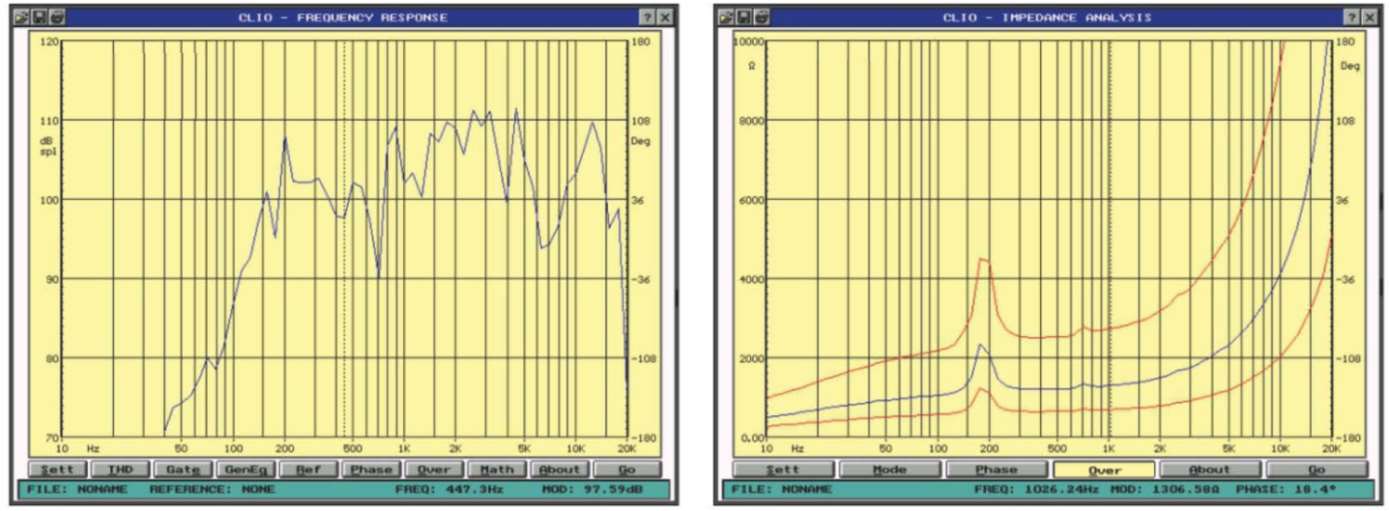

Frequency Response VS SPL Diagrams:
